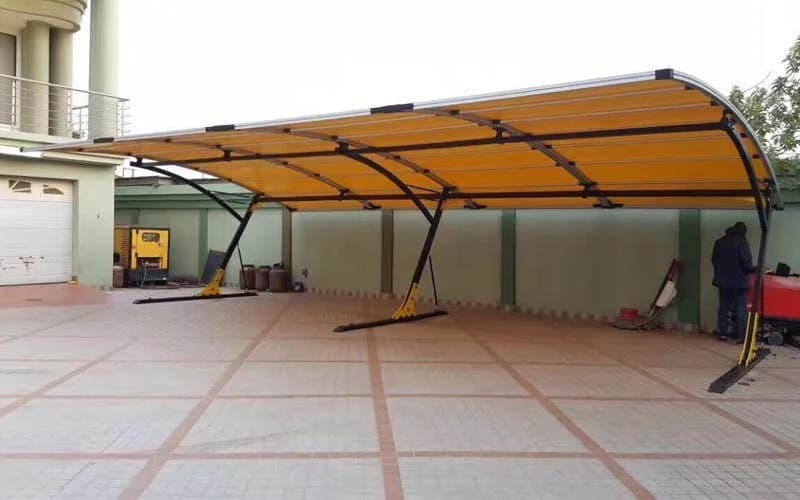

Quad Carport (4 vehicles)
Model: Carport Cuádruple
10.50 × 5.95 m shade for four vehicles: four 2.50 m spaces in a single module, made to order for condominiums, plazas and fleets.
The largest Carport format: four 2.50 m spaces (10.50 m overall width with frame) by 5.95 m deep under a single module. Same UV-blocking PVDF membrane, 3 mm powder-coated galvanized steel and solar LED lamp as the smaller formats. Ordered per project — number of modules and canopy colors sized to the parking lot — for condominiums, commercial plazas, hotels and fleet yards that need shade at scale without traditional construction.
Availability
Made to order· Lead time to be confirmed🇸🇻 El Salvador
Availability and lead time are confirmed by an advisor when quoting.
Specification support
from design to installation
Exclusive distribution
Hunter Douglas & LuxaLine
Landmark projects
across the isthmus
- PVDF membrane: blocks 100% of UV rays
- Hail resistant
- 3 mm galvanized steel with powder coating
- Solar-powered LED lamp included
- DIY installation kit, no major civil works
- Demountable: relocate it without losing the structure
- Canopy colors made to order
Gallery
Specifications
- Capacity
- 4 vehículos
- Overall width
- 10.50 m (4 plazas de 2.50 m + estructura)
- Projection (depth)
- 5.95 m
- Clearance height
- 2.10–2.60 m (frente) · 1.70–2.10 m (fondo)
- Canopy
- Membrana PVDF 1,050 g — bloquea 100 % los rayos UV, resistente al granizo
- Frame
- Acero Q235 galvanizado por inmersión en caliente + pintura electrostática (blanco o negro)
- Profiles
- Columnas 80 × 60 × 3 mm · bases 120 × 60 × 3 mm
- Canopy frame
- Aluminio 60 × 60 × 2 mm, sello superior y nylon reforzado
- Fasteners
- Tratada contra la corrosión
- Lighting
- Lámpara LED con panel solar (incluida)
- Canopy colors
- Por pedido (ver muestrario)
- Installation
- Kit para armar uno mismo · desmontable para reubicar
- Application
- Condominios / plazas comerciales / flotas (por proyecto)
