LuxaLine · Architecture
ACM · Aluminium Composite
Model: ACM · Aluminium Composite
Aluminum composite panel for facades, with Sisa Vista and Butt Joint systems.
- Paint
- PVDF Kynar 500
- Weight
- 5.5 kg/m²
- Panel size
- 1220 × 2440 mm
Two aluminum sheets heat-bonded to a thermoplastic core, ensuring permanent adhesion. PVDF Kynar 500 paint finish with uniform color and high resistance to weathering and sunlight. Two installation systems (Sisa Vista and Butt Joint) plus an ACM Perforated option with CNC machining to the client's design.
Availability
Ask about availability
Availability and lead time are confirmed by an advisor when quoting.
Gallery
See it in action

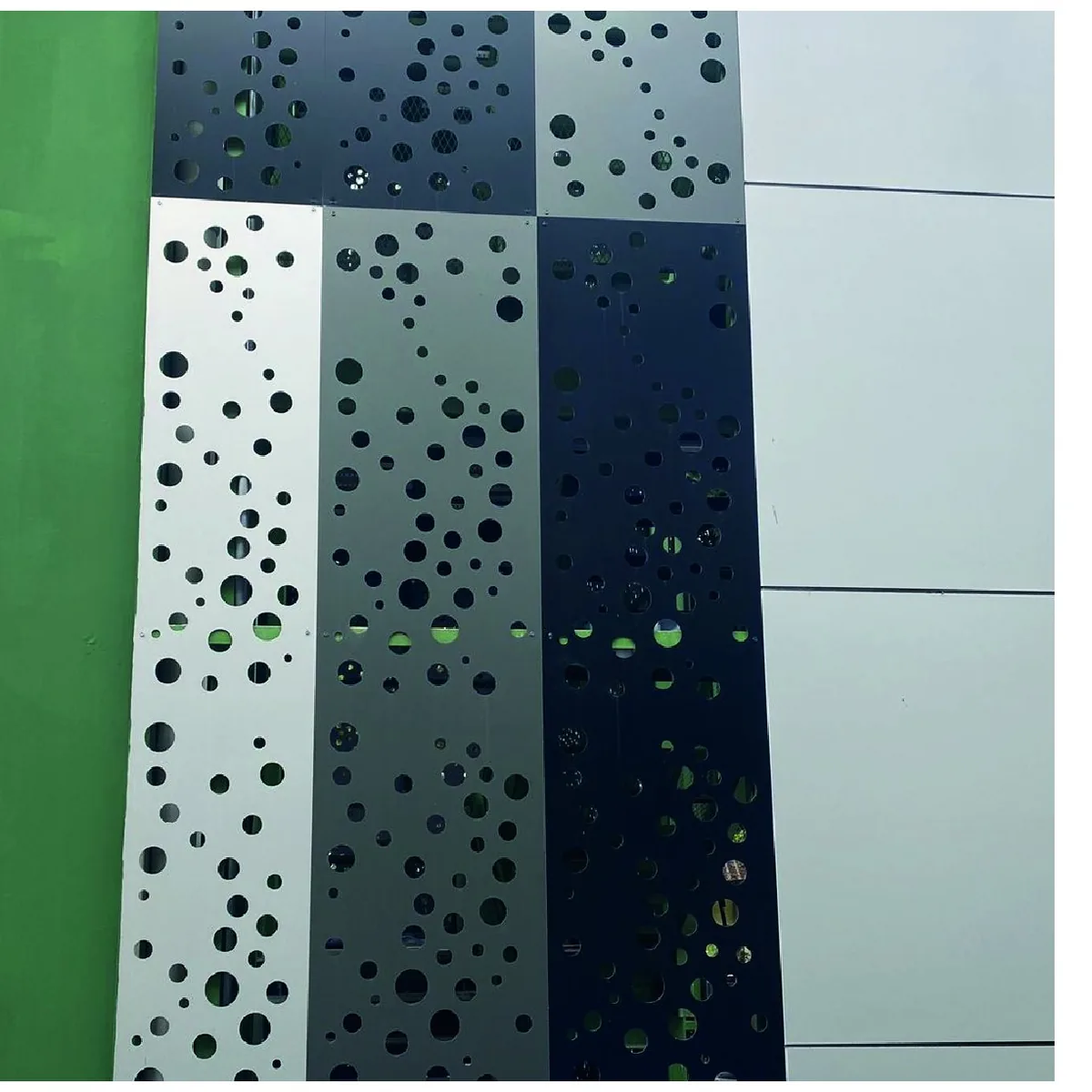

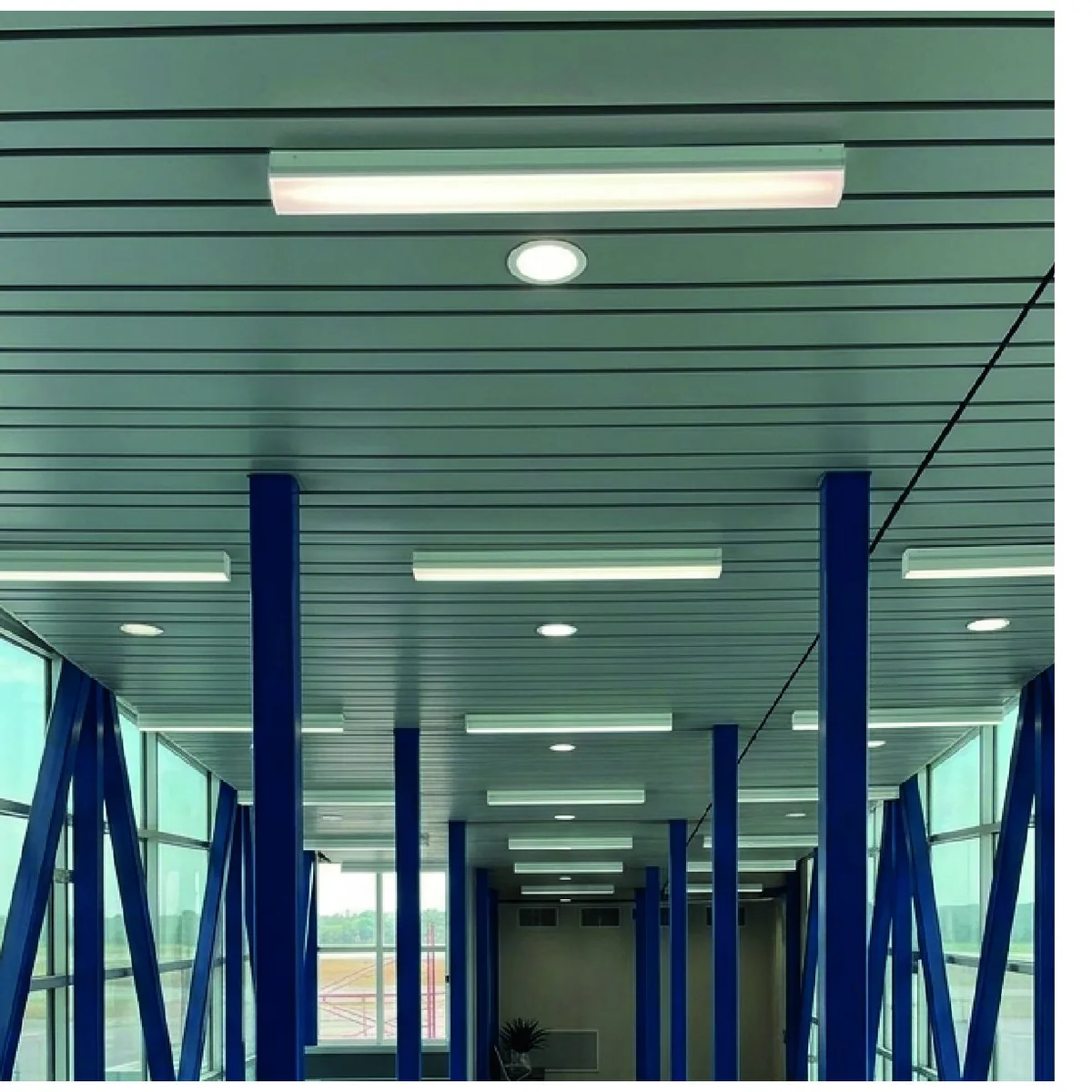

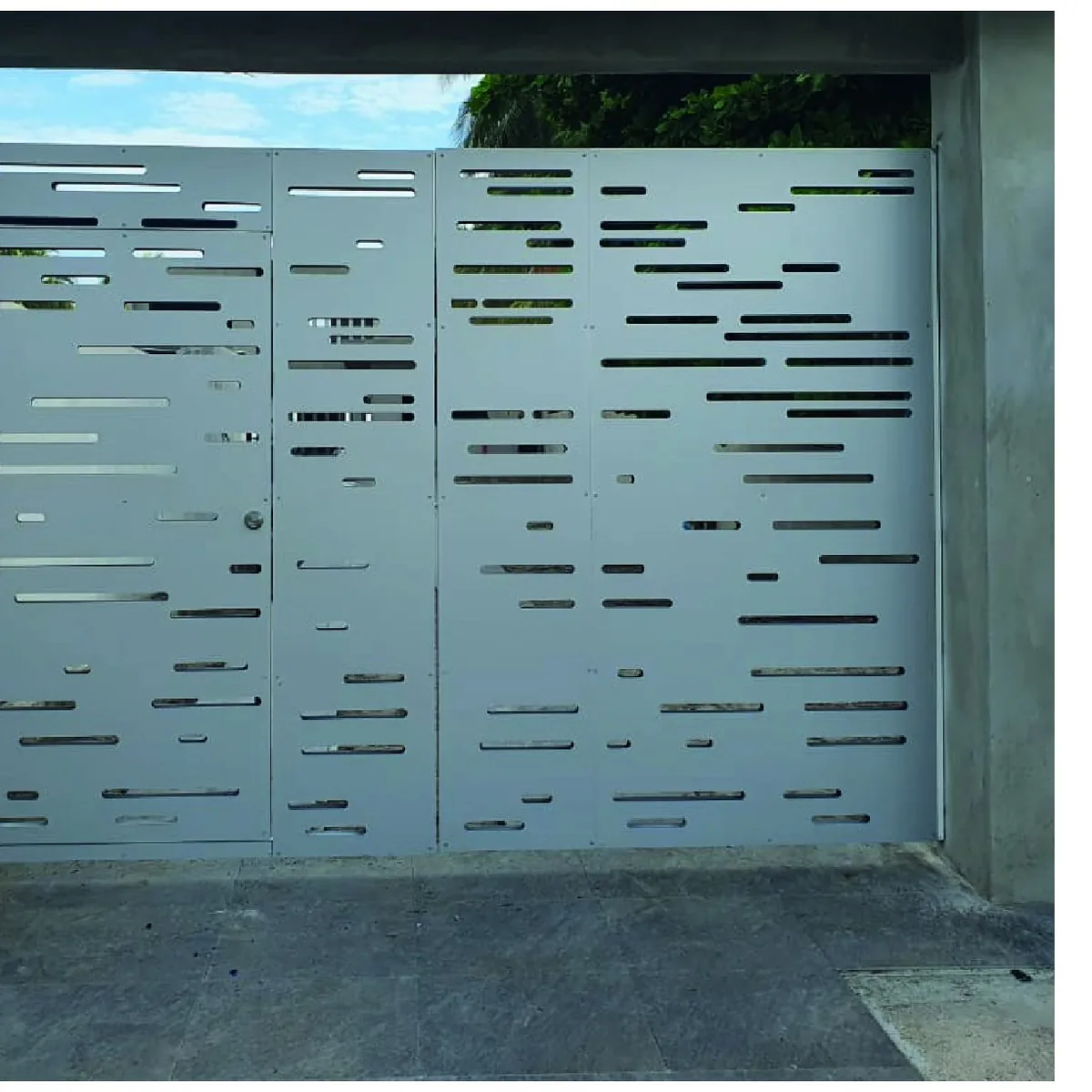

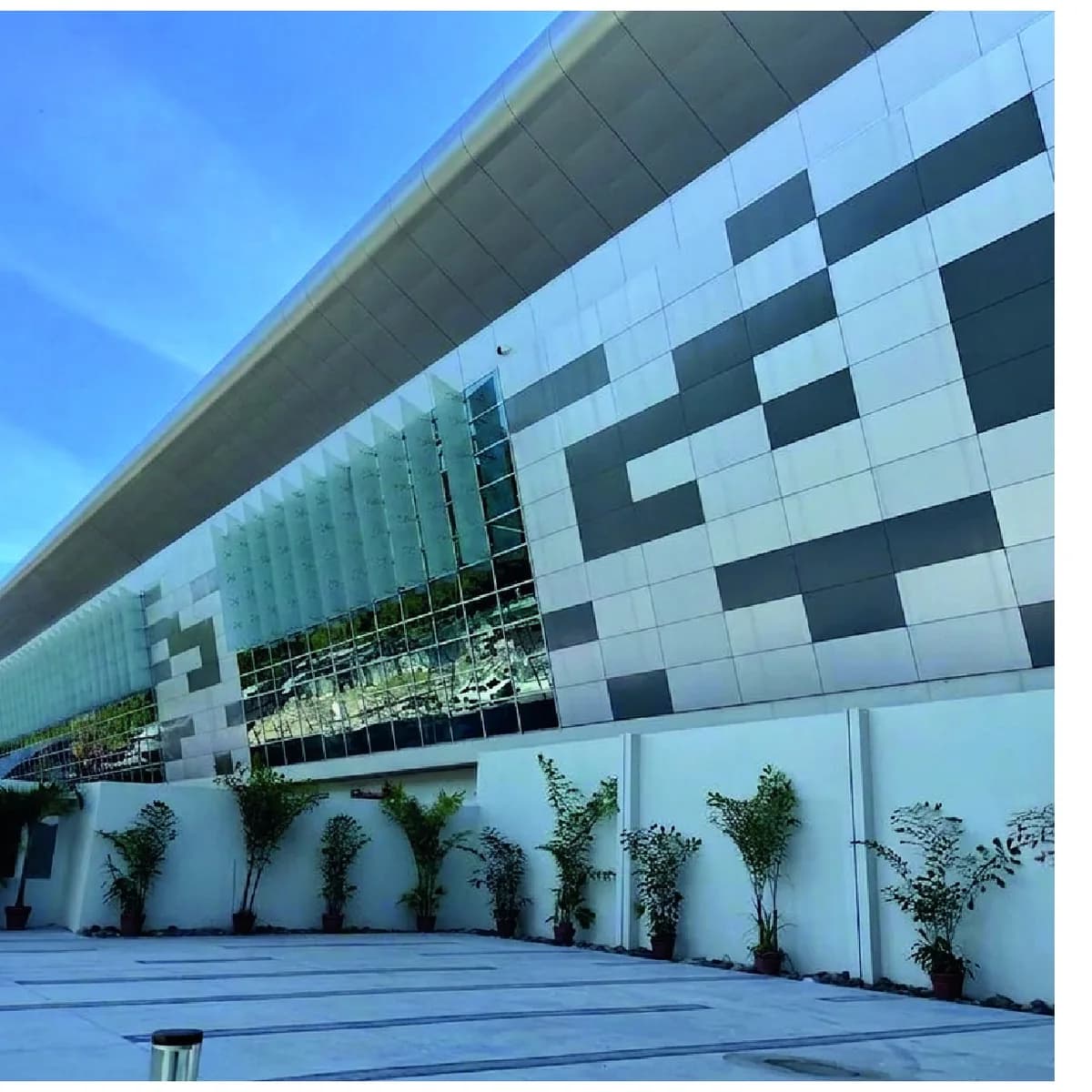

ACM panels
LuxaLine ACM
Specifications
- Material
- 2 chapas de aluminio + núcleo termoplástico
- Total thickness
- 4 mm (chapas 0.4 / 0.4 mm)
- Paint
- PVDF Kynar 500
- Weight
- 5.5 kg/m²
- Panel size
- 1220 × 2440 mm
- Systems
- Sisa Vista · Junta a Tope
- Applications
- Fachadas, techos, columnas curvas, señalética
- Finishes
- Silver, Espejo, Gris Oscuro, Madera, Negro, Azul Brillante
- Certifications
- Garantía 15 años en exterior
