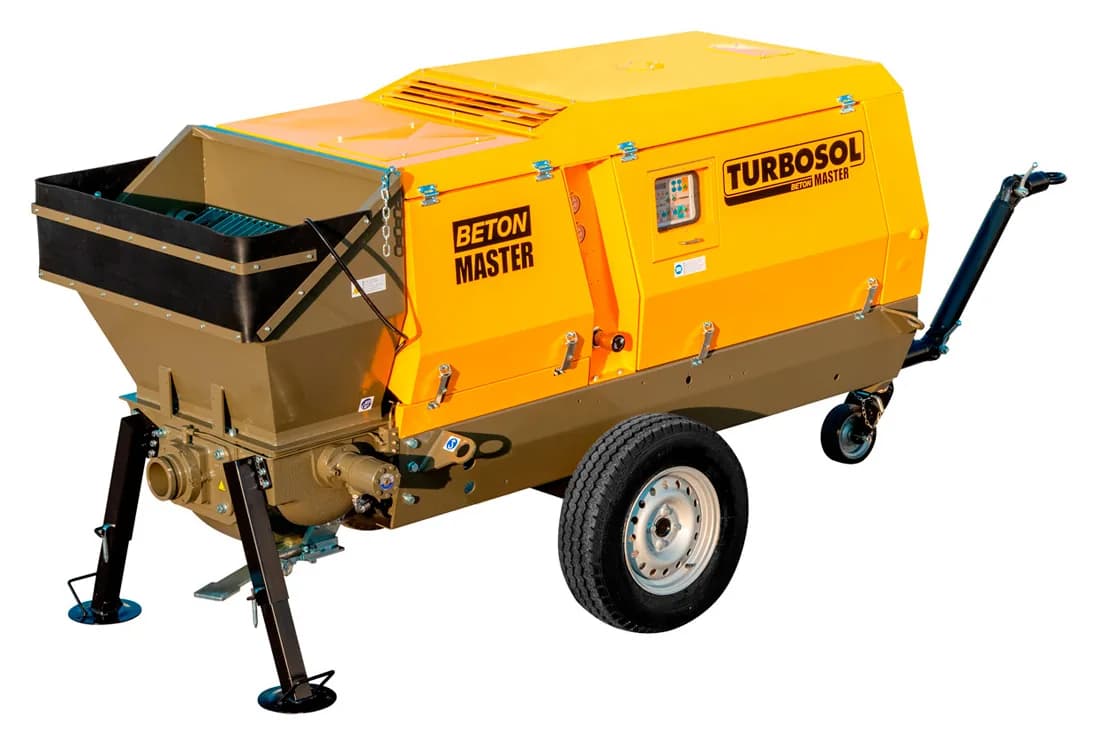

Beton Master Concrete Pump
Model: Beton Master · Engine: Diésel 4 cilindros 36.3 kW (50 HP) Stage IIIA · versión /E eléctrica 22 kW
Stationary concrete and shotcrete pump: 200 m reach and heavy-duty S-valve.
Stationary concrete pump (towable in /T version) for pours, piles and shotcrete. 250 l hopper with S-valve and agitator, centralized lubrication, Bosch Rexroth variable-displacement hydraulic pump and 30 m cable remote. Handles up to 25 mm aggregate and pumps 2-15 m³/h up to 200 m away or 100 m high.
Availability
Ask about availability
Availability and lead time are confirmed by an advisor when quoting.
Parts in stock
in your country
Certified workshop
group technicians
Brand backing
after the sale
- S-valve with centralized lubrication
- Bosch Rexroth variable-displacement hydraulic pump
- 30 m cable remote control
- Accessory kits for pumping or shotcrete
- Versions: stationary, towable /T and 22 kW electric /E
Specifications
- Output
- 2–15 m³/h
- Max pressure
- 80 bar
- Delivery distance
- hasta 200 m
- Delivery height
- hasta 100 m
- Max aggregate size
- 25 mm
- Pumping cylinders
- Ø120 mm, carrera 700 mm
- Hopper
- 250 l con agitador
- Outlet
- 4" (100 mm), acople Victaulic
