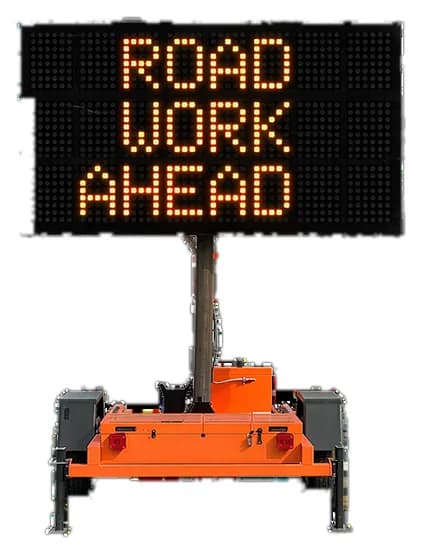

CMS-T331 Full-Size Portable Changeable Message Sign
Model: CMS-T331
Full-size character-matrix message sign: large text, readable beyond 1,000 ft.
Full-size trailer-mounted portable message sign with a CHARACTER-matrix display: each cell draws one letter, so it programs fast and reads from far, but it does not render free-form graphics (that is the full-matrix T333). All-LED with 5 diodes per pixel and 30° angularity, 30-day autonomy on one 170 W solar panel and four batteries, and handheld-terminal control with WYSIWYG preview. MUTCD and FHWA compliant, and speaks NTCIP v2 for traffic-management integration.
Availability
Ask about availability
Availability and lead time are confirmed by an advisor when quoting.
Parts in stock
in your country
Certified workshop
group technicians
Brand backing
after the sale
- MPPT controller with automatic solar charge management
- Handheld terminal with menus and WYSIWYG message preview
- Factory and custom messages, with schedule programming
- Password-protected access and system diagnostics
- ITS options: speed radar, queue detection, CCTV and GPS
- Lithium (LiFePO4) battery upgrade
Specifications
- Matrix
- Matriz de caracteres 21 × 40 píxeles
- Message
- Hasta 3 líneas × 8 caracteres
- Legibility
- 1,000+ ft (300+ m)
- LEDs
- Ámbar ITE, 5 por píxel, 30° de angularidad
- Power
- Solar 1 × 170 W + 4 baterías 12 V, cargador 110 VAC a bordo
- Autonomy
- 30 días
- Compliance
- MUTCD · FHWA · NTCIP v2 (objetos V1203)
- Communications
- Celular, Ethernet e inalámbrica
Downloads
Also in American Signal

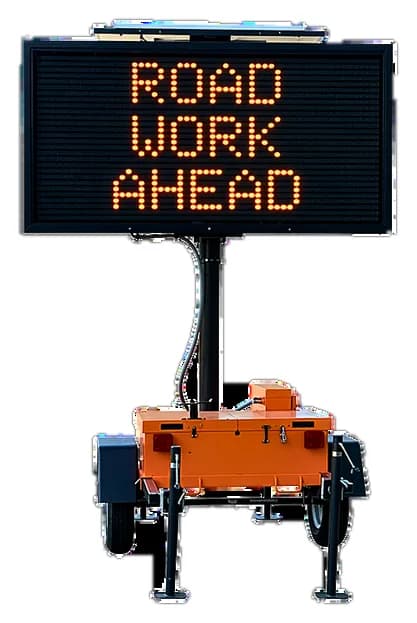

CMS-GP432T
CMS-GP432T Advantage Portable Changeable Message Sign
Trailer-mounted 4'×8' full-matrix LED message sign, MUTCD/NTCIP compliant for work zones.
View more

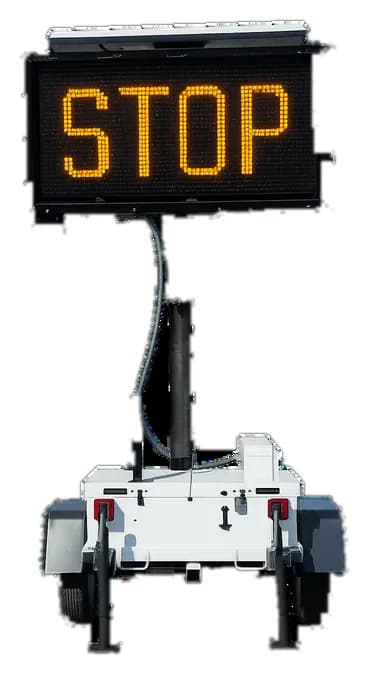

CMS-GP232
CMS-GP232 Advantage Changeable Message Sign
The compact of the Advantage family: 18 characters per line, on trailer or truck.
View more

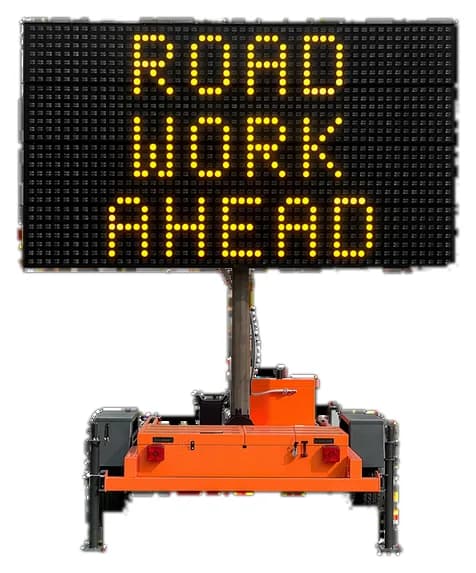

CMS-T333
