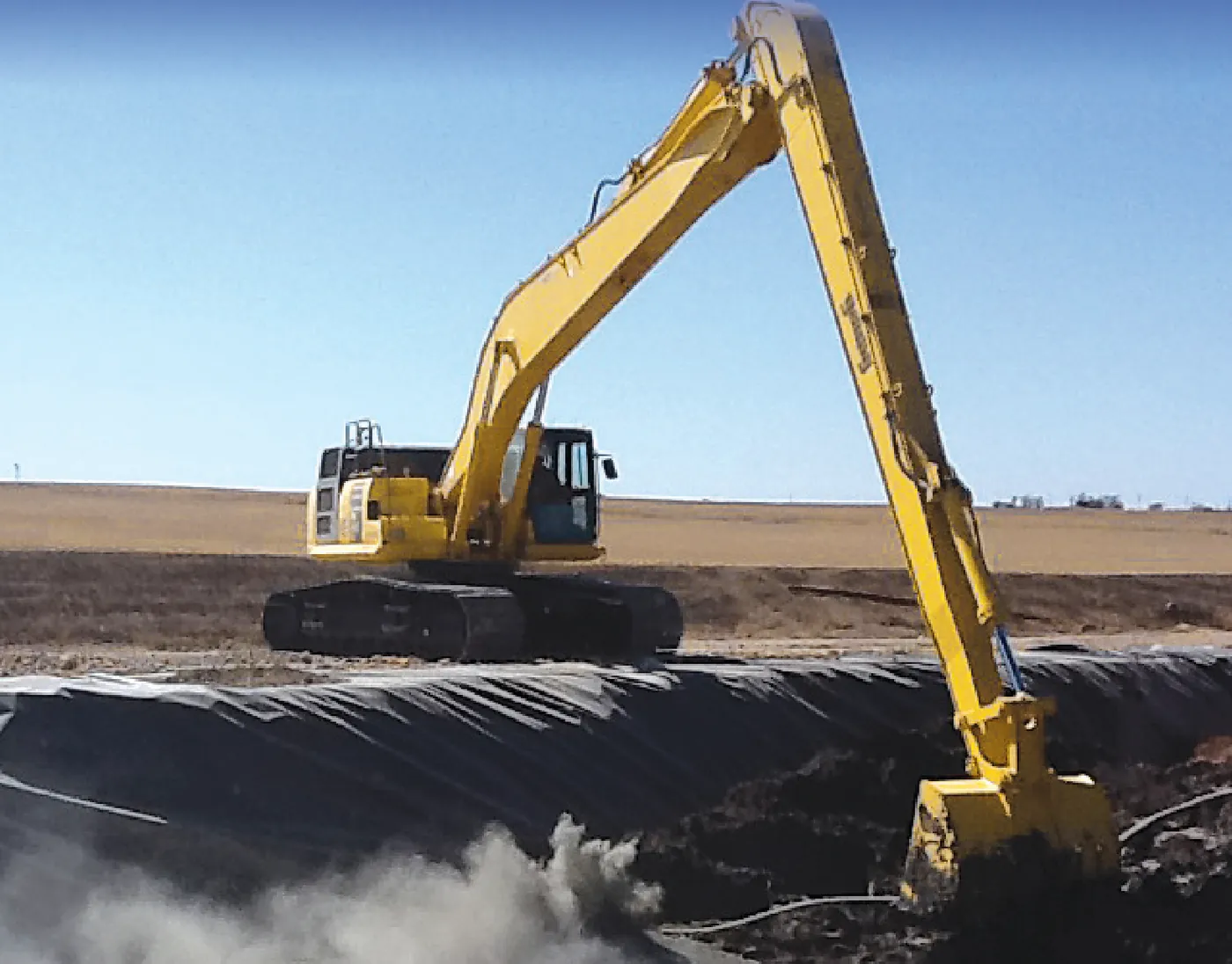

Reach without entering the water
Long-reach excavator
“I need to clean a canal and the machine cannot reach from the bank”

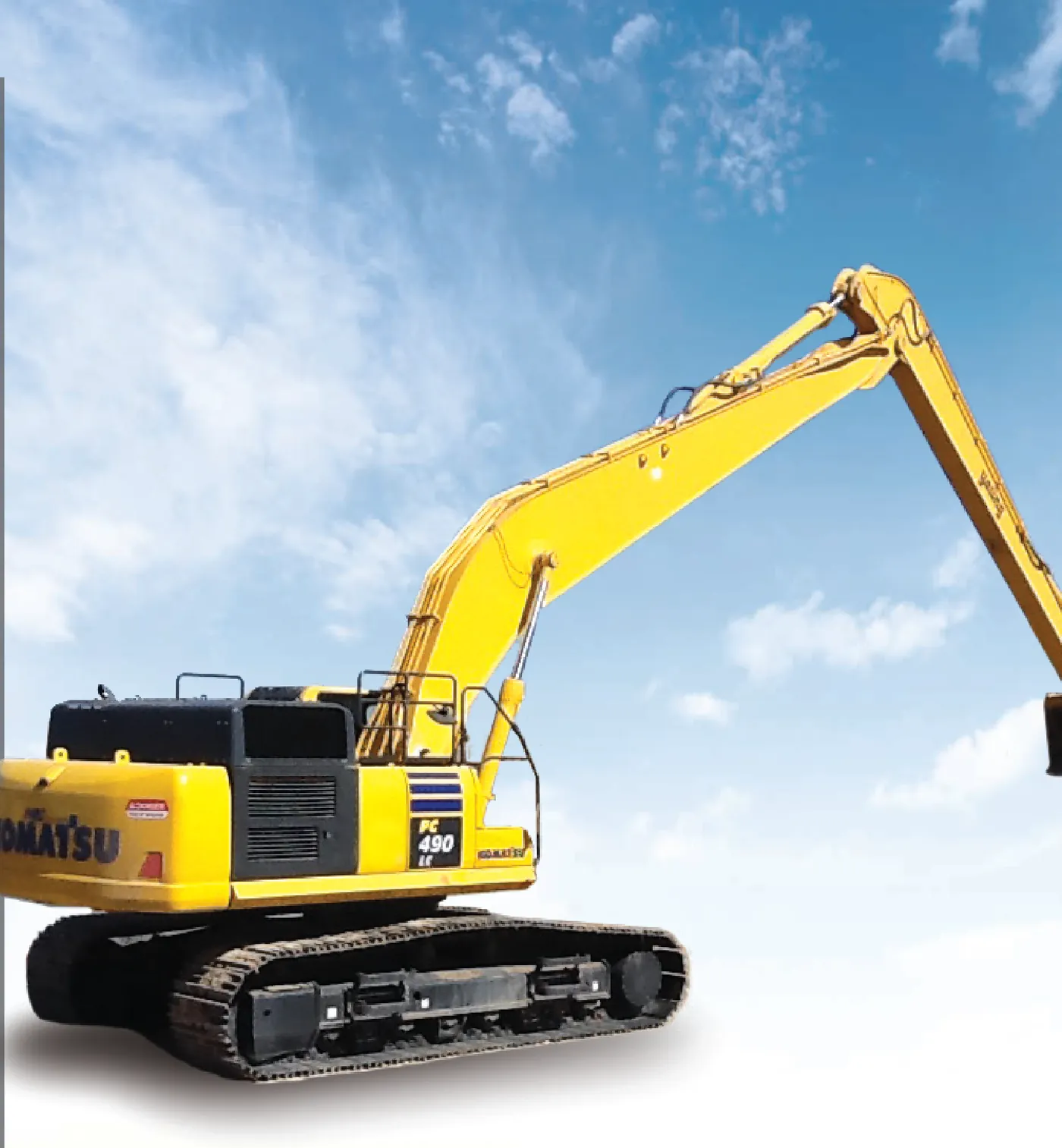

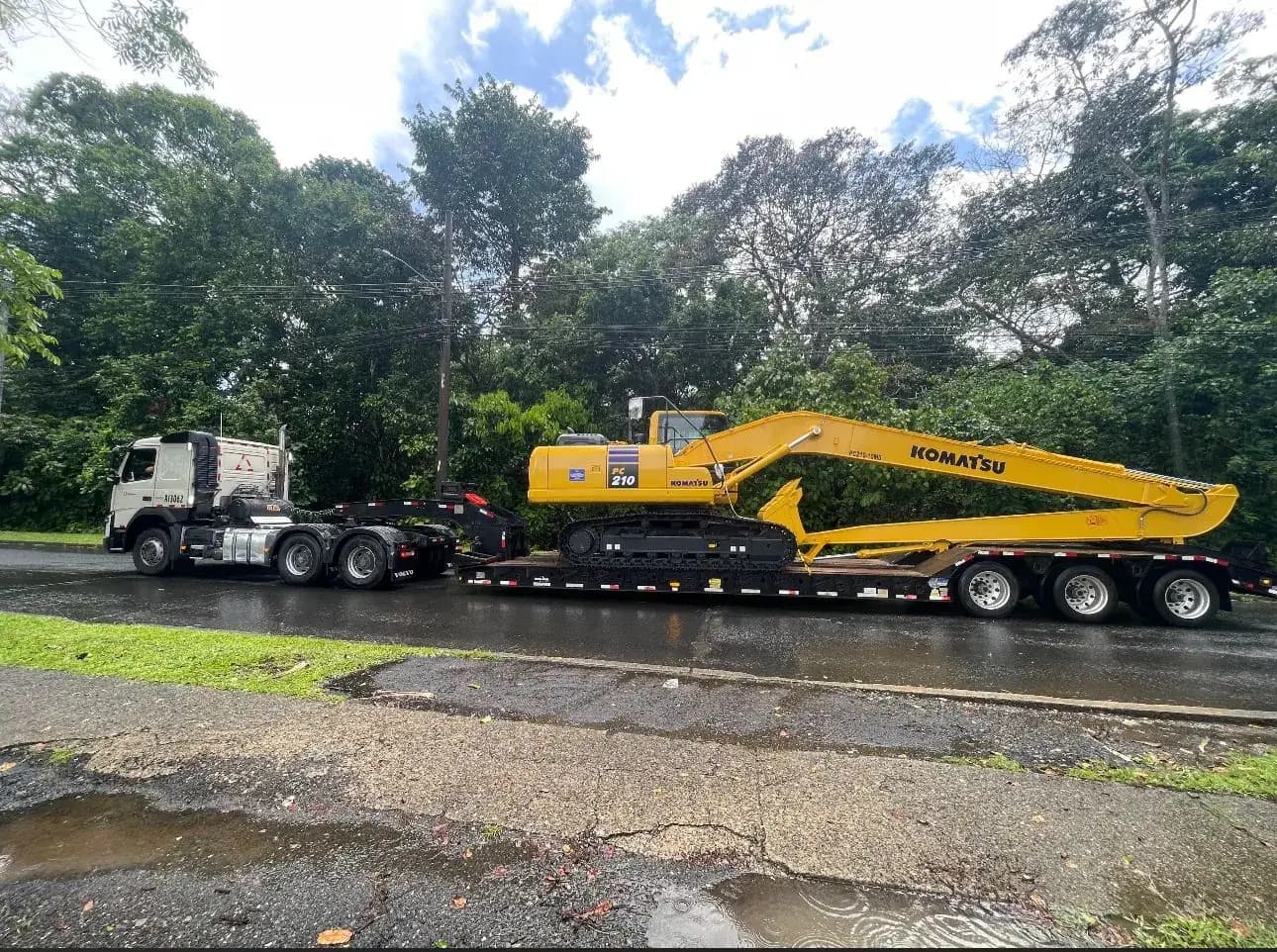

The Super Long Front is not an arm bolted onto a catalog machine: it is a Komatsu factory arrangement, built from the frame up. It carries additional factory counterweight, frame reinforcement and optimized hydraulics to hold that reach without compromising the machine's balance. It goes on the PC210LC-10, PC240LC-10, PC290LC-10, PC360LC-10, PC390LC-10 and PC490LC-10, with fronts from 15.2 to 19.8 metres. The arm tucks under the boom so the machine transports without dismantling the front.
- Front length
- 15.2 – 19.8 m
- Max digging reach
- 15,240 – 19,812 mm
- Max digging depth
- 11,506 – 14,072 mm
- Base machines
- PC210LC-10 → PC490LC-10
Where it is used
The jobs it solves
- Rehabilitation of waste and settling ponds in plants
- River and creek bank maintenance and stabilisation
- Dredging of waterways and bridge foundations
- Irrigation and drainage ditch maintenance
- Highway sloping and landscaping
- Cofferdam and slurry-wall construction in light soils

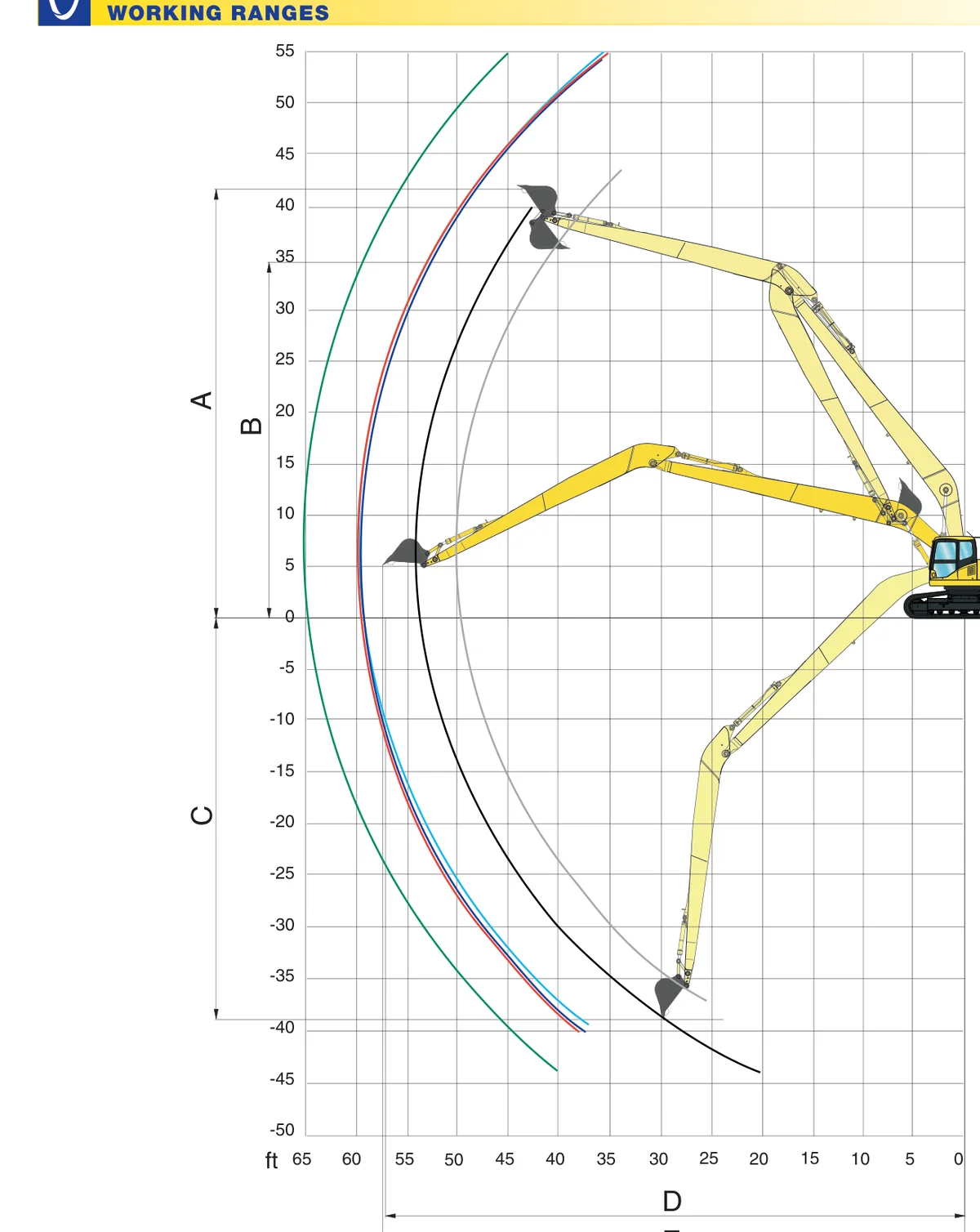

A long front trades breakout force for reach: the front is sized against the project's actual depth and material, not the other way round. The ranges below are factory catalog figures — the reach that applies to your site comes out of the technical visit.
It arrives as one machine, with one point of responsibility
A single point of responsibility

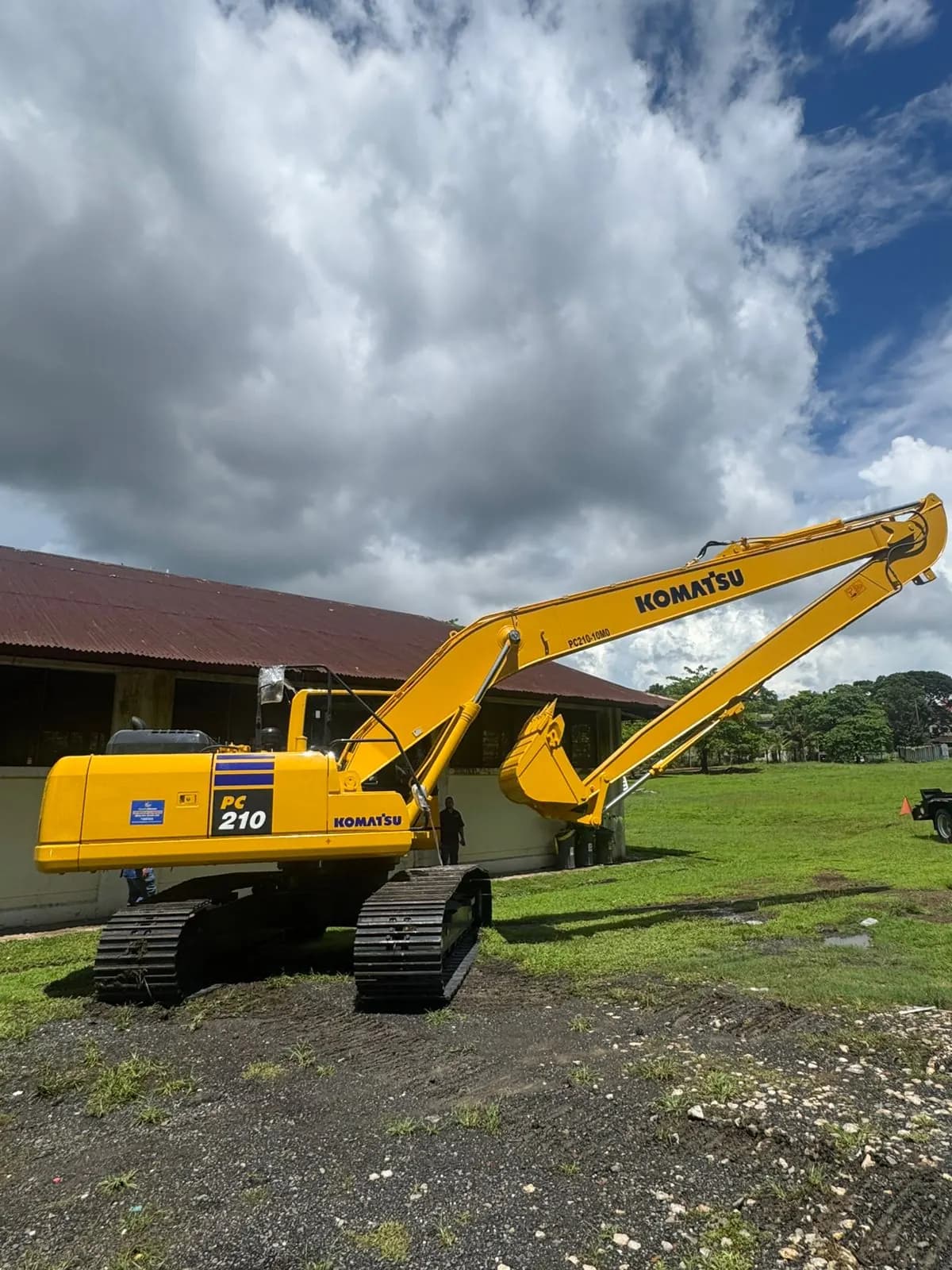

The base machine, the special configuration and the commissioning arrive as one machine delivered by the group. No finger-pointing between suppliers when something fails.
Local support for the base machine
It is a Komatsu: parts, workshop and certified technicians in El Salvador, Guatemala, Nicaragua and Panama, with the same KOMTRAX telematics as the rest of the fleet.
Sized against the project
Reach, depth and soil type govern, not a catalog. It is defined in a technical visit and quoted against the real job, not against a list of options.
Other configurations
Amphibious excavator
Where a standard undercarriage sinks
Forestry and timber handling
From the bush to the log yard
High-reach demolition
Taking the structure down without taking the machine down
Material and scrap handling
Seeing inside the container
Pedestal boom system
The machine that doesn't move
Amphibious carrier
Getting the spoil out of the swamp
Tell us the job, not the machine
What has to be moved, at what depth, over what ground and for how long. With that we define the base machine and the configuration, and the proposal comes back against the real job.
Request a technical visit
