Filters and wear parts: warning signs and when to replace them

Filters and wear parts are the cheapest items on the machine and the most expensive to neglect. A clogged filter doesn't sound an alarm: it shows up as smoke, lost power or heat, and by the time you notice, the damage has already started in the engine or the hydraulic system. This guide sums up which symptom points to which filter, what it ends up damaging, and how to get the most from the parts that work against the ground.

Air filter: wear that comes in through the intake

Dust that gets past the air filter acts like sandpaper inside the engine: it wears cylinders and rings, and the result is lost power, black smoke and rising oil consumption. The most common causes aren't the filter itself but how it's handled: cleaning the element by banging it or with excessive air pressure tears the paper, a loose nut or worn seal lets unfiltered air through, and imitation elements tend to fail right at the seal. Check the restriction indicator daily on dusty sites and replace the element when it says so, not when it looks dirty.

Engine oil filter: pressure, noise and blue smoke

When the oil filter saturates, the oil stops cleaning and lubricating as it should. The signs: oil pressure drops, new noises appear, blue smoke comes out, oil degrades early or changes viscosity, and the warning light comes on. Keep working like that and the damage escalates: valve wear, scored pistons and liners, flaking bearings, a seized turbo and, at worst, a seized crankshaft. Typical causes are stretched change intervals, oil that isn't the specified grade, imitation filters, and new filters or oil stored badly.

Fuel filter: the one that protects injection

Fuel also lubricates the injection pump, and the pump and injectors are made to minimal tolerances: one particle or drop of water is enough to score or clog them. A saturated fuel filter shows up as hard starting, poor acceleration, lack of power, abnormal exhaust color and rising consumption. Ignore it and you get clogged injectors, a worn pump, burnt valves and carbon deposits from incomplete combustion. Besides changing it on time, drain water and sediment from the tank and separator as often as the manual says, and watch where and how fuel is stored on site.

Hydraulic filter: change it before it clogs

Today's hydraulic systems work at pressures around 350 bar to deliver more force, and at that pressure the oil passes through very fine orifices and valves. A filter that is already clogged doesn't hold back all the wear particles and lets them circulate through valves and cylinders. That's why the hydraulic filter is changed by the hour, before it saturates, not when the machine starts feeling slow or running hot. The same causes repeat: long intervals, non-specified oil, imitation filters and careless storage of new filters and oil.

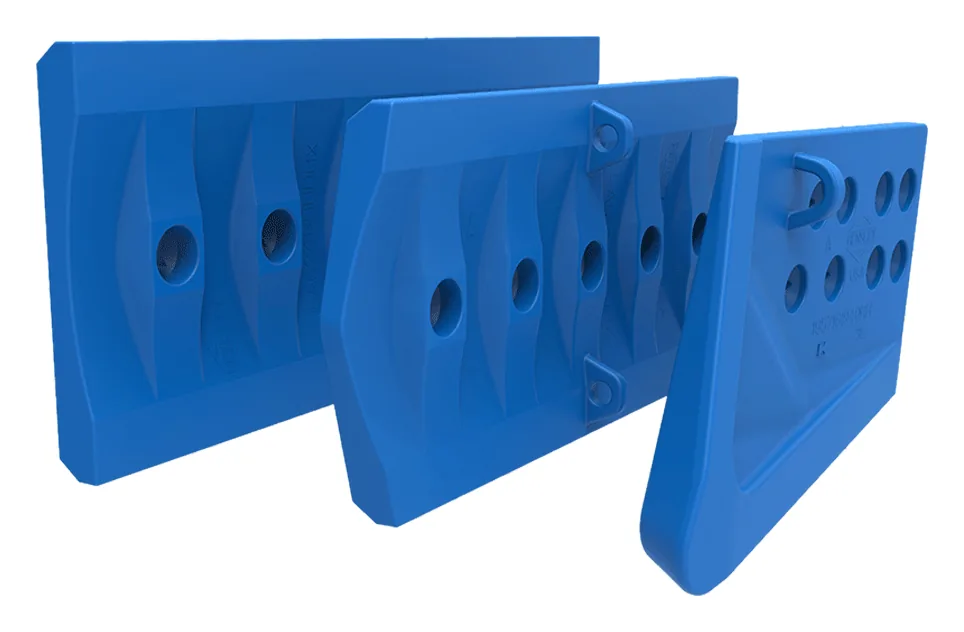

Cutting edges and end bits: flip them in time

On a dozer blade, symmetric cutting edges can be flipped to use the other edge, which practically doubles their service life (it doesn't apply the same way on graders). The key is to flip them before wear reaches the manufacturer's limit: let it pass and wear reaches the blade, and the repair is no longer an edge, it's the moldboard. Check the bolts too: a loose edge wears unevenly and breaks hardware. On rocky or very abrasive ground, blade reinforcement plates protect the structure where it wears most.

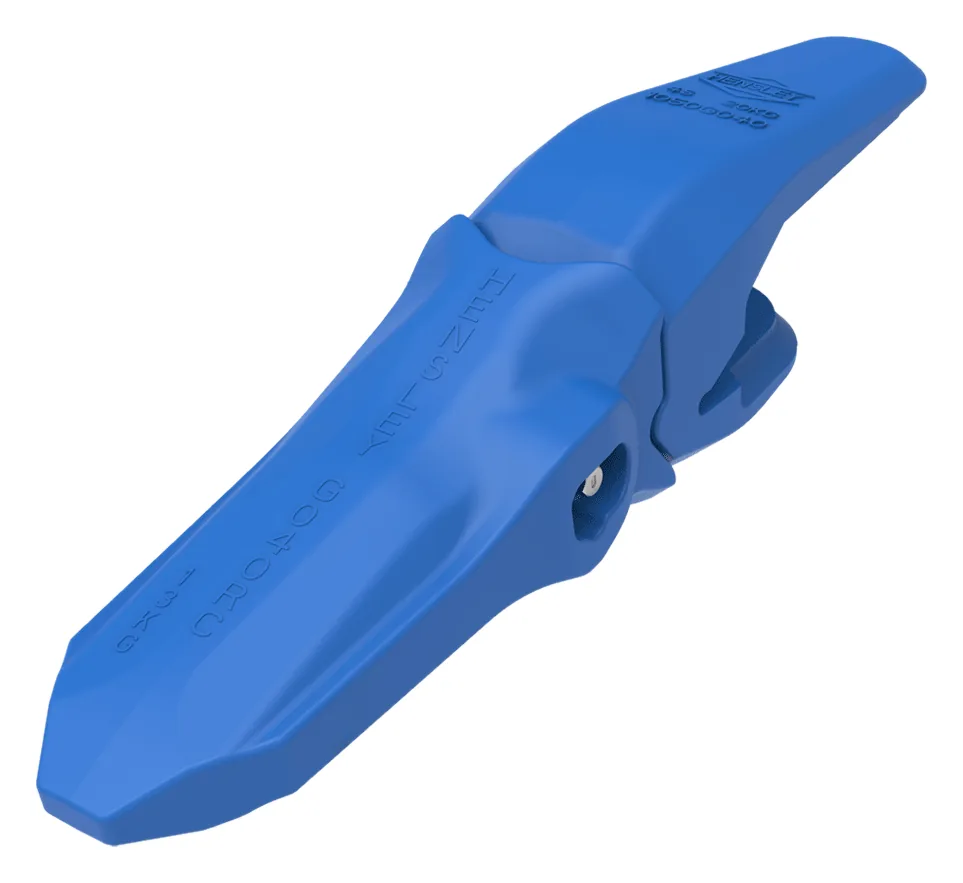

Teeth and tips: the right type for each ground

There's no single tooth for everything. Penetration teeth keep a sharp tip and perform in compact soil or fractured rock; abrasion teeth carry more material and last in sand, gravel or caliche; rock teeth combine hardness and impact resistance. The wrong type costs you in productivity (the bucket won't bite) or in parts that wear out in weeks. The ripper is the same: if the tip doesn't bite the rock and slides, friction heats it and wears it fast; a penetration tip or an angle adjustment is the fix. Reversible tips can be turned to recover the edge and postpone replacement.

Why the genuine part costs less

A genuine filter uses media designed for that machine's pressure and flow, with seals made to fit; an imitation can look identical and let through exactly the particles that do the damage. In wear parts, the difference is the steel and the heat treatment: they last more hours before the repair limit and resist impact better. The honest comparison isn't the part price, it's cost per working hour and the cost of an engine or pump if the part fails.

Get a quote without leaving

Want to work it out with an advisor?

Topic: Filters and wear parts

Which country is your project in?

Frequently asked questions

Can I clean the air filter instead of replacing it?

The outer element can be carefully cleaned per the manual, with low-pressure air from the inside out, a limited number of times. Banging it or blowing hard tears the paper and lets dust into the engine. The inner element isn't cleaned: it's replaced.

How do I know it's a filter and not something worse?

If the sign shows up near the change interval (lost power, smoke, heat, low pressure), the filter is the first and cheapest suspect to rule out. If it persists after changing it with the specified filter and oil, the machine needs a workshop check before the damage progresses.

How often do I change edges and teeth?

It's not by hours but by wear: they're measured against the manufacturer's limit. In abrasive ground they may last a fraction of what they last in loose soil. Checking them at every service and flipping or rotating in time is what extends their life most.

What do I need to order the right parts?

The full model (with the number after the dash) and the machine's serial number. With that the quote is right first time; with only the short name it's easy to get a part that doesn't fit.
